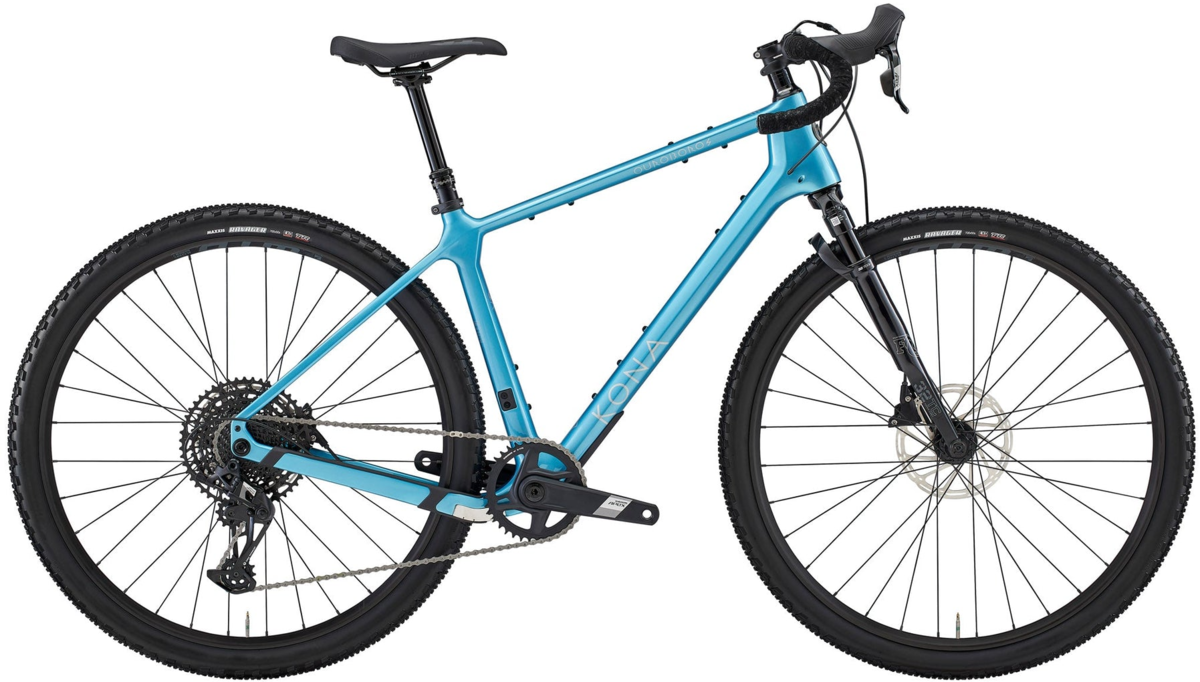

Kona Ouroboros CR

Kona Ouroboros CR
  • Color: Gloss Metallic Blue w/ Metallic Silver Decals
$3,799.00
Color: Gloss Metallic Blue w/ Metallic Silver Decals
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Please note, all online purcahses will not ship and must be collected in-store. For any inquiries or issues, please contact the store.

Details

Whether you’re a gravel-loving mountain biker or a mountain-bike-loving gravel biker, the Ouroboros Carbon is the lure to catch the attention of both. We’ve made sure each coin spent is met with the corresponding value in shred performance. The Ouroboros Carbon is meant for big things, so we put big things on it – like fat tires, large rotors, a mountain standard dropper post width, and a low, yet wide gear range. Hop on and let the journey unfold.

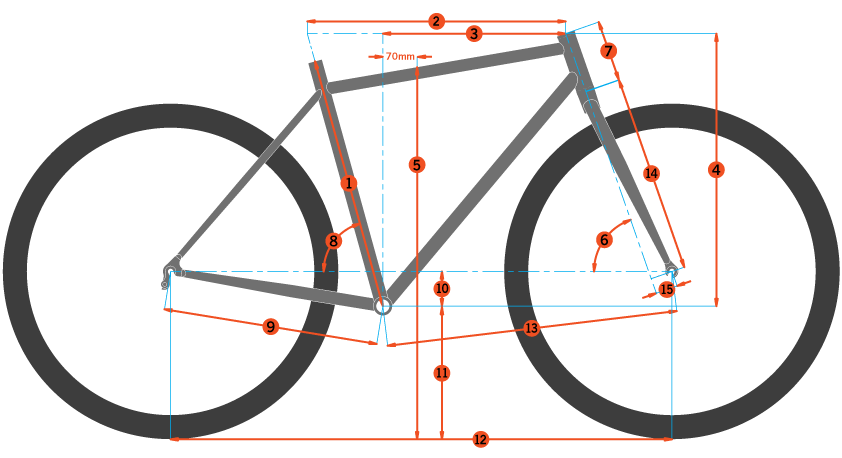

Geometry
Sizes:
Size485052545658
1 ST Length 410 410 455 455 500 535
2 TT Length 530 544 559 576 593 613
3 Reach 380 385 390 395 400 405
4 Stack 560 575 590 610 630 660
5 Standover 716 721 758 768 806 840
6 HT Angle 69.5 69.5 69.5 69.5 69.5 69.5
7 HT Length 115 131 147 172 193 225
8 ST Angle 75 74.5 74 73.5 73 72.5
9 CS Length 445 445 445 445 445 445
10 BB Drop 75 75 75 72 72 72
11 BB Height 292 292 292 295 295 295
12 Wheelbase 1059 1069 1080 1094 1106 1123
13 Front Center 625 635 646 659 671 687
14 Fork Length 420 420 420 420 420 420
15 Fork Offset 55 55 55 55 55 55
Sizes:
Height/InchesHeight/MetricInseam/InchesInseam/MetricRoveLibreSutra/OuroborosDewsCoCo
4'10"-5'1" 147-155cm 24”-27” 61-69cm 48cm 50cm 48cm N/A XS
5'0"-5'3" 152-160cm 26"-29" 66-74cm 48-50cm 50cm 48-50cm Small Small
5'2"-5'7" 157-170cm 27"-30" 69-76cm 48-52cm 50-52cm 48-52cm Small, Medium Small, Medium
5'6"-5'10" 168-178cm 29"-31" 74-79cm 52-54cm 52-54cm 52-54cm Medium Medium
5'9"-6'0" 175-183cm 30"-33" 76-84cm 52-56cm 54-56cm 54-56cm Medium, Large Medium, Large
5'11"-6'2" 180-188cm 32"-35" 81-89cm 54-58cm 54-58cm 54-58cm Large, XL Large
6'1"-6'5" 185-196cm 33"-36" 84-91cm 56-58cm 58cm 56-58cm XL N/A

Specs

Frame Kona Carbon
Fork Fox TC32 Performance GRIP damper, 40mm travel, Tapered, 100x12mm
Rims WTB KOM Team i27 700c 32h
Hubs Front Hub: Formula 100 x 12 6-bolt Rear Hub: Formula 142 x 12 6-bolt, 11sp Road freehub
Spokes Stainless Black 14g
Tires Maxxis Ravager 700 x 50 TR EXO
Bottom Bracket SRAM Press-Fit 86.5 DUB Wide
Crankset SRAM Apex 1 DUB Wide
Chainrings SRAM Apex 38t AL direct mount
Shifters SRAM Apex 12
Rear Derailleur SRAM Apex 12 Eagle
Cassette/Freewheel SRAM PG-1230 11-50t 12 speed
Chain SRAM NX Eagle 12 speed
Brakes SRAM Apex Flat Mount Hydraulic
Rotors SRAM Centerline 6-bolt 180mm
Brake Levers SRAM Apex 12
Handlebars Kona 20-degree flare, 48: 440mm; 50: 460mm; 52-54: 480mm; 56: 500mm; 58: 520mm
Tape/Grips Velo bar tape
Stem Kona 6-degree rise, 48-52: 40mm; 54-58: 50mm
Headset FSA Orbit No. 57E, ZS 44/56
Seatpost TranzX Dropper +RAD Internal, 31.6mm, 125mm travel
Saddle WTB Volt Medium Steel SL

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Metallic Blue w/ Metallic Silver Decals / 48cm / 700c 841073152261 B36ORC48
Gloss Metallic Blue w/ Metallic Silver Decals / 50cm / 700c 841073152278 B36ORC50
Gloss Metallic Blue w/ Metallic Silver Decals / 52cm / 700c 841073152285 B36ORC52
Gloss Metallic Blue w/ Metallic Silver Decals / 54cm / 700c 841073152292 B36ORC54 210000005486
Gloss Metallic Blue w/ Metallic Silver Decals / 56cm / 700c 841073152308 B36ORC56 210000005471
Gloss Metallic Blue w/ Metallic Silver Decals / 58cm / 700c 841073152315 B36ORC58
