Kona Woo
$1,699.00 - $2,399.00
$2,399.00
Details

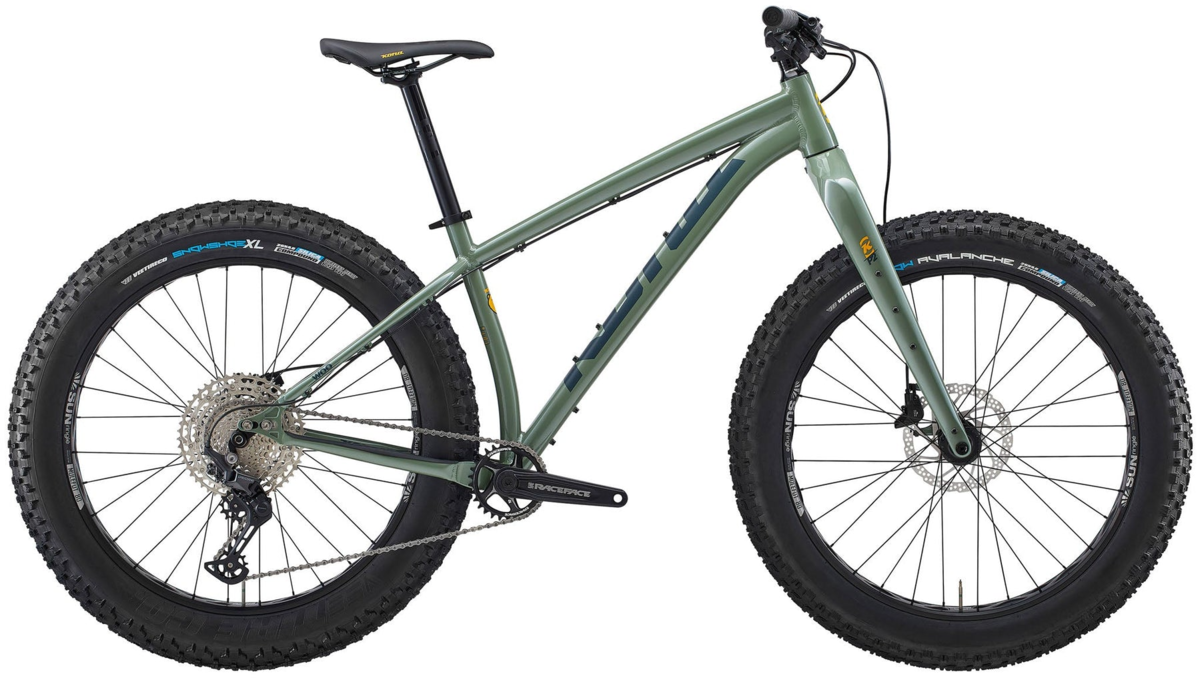

The Woo continues to be one beloved fat beast! Its ability to carry massive amounts of gear with its three-pack cage mounts aboard its carbon disc fork make it a sand and snow bikepacking favorite. With geometry derived from the Honzo, ultra-powerful hydraulic disc brakes, and a 12-speed drivetrain, you’re in complete control whether climbing up snowy mountains or surfing sandy descents. 4.8" tires ensure that rolling over anything is possible. We bet you’ll catch yourself "Wooing" your way down your favorite trails.

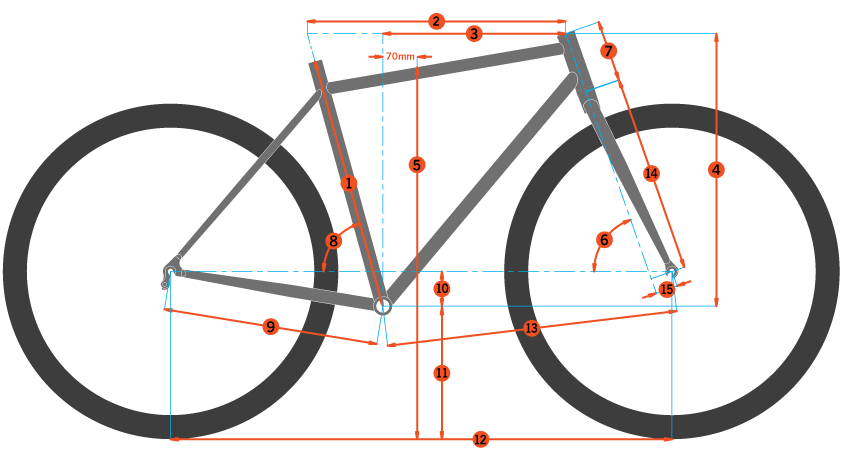

| Size | S | M | L | XL | |
|---|---|---|---|---|---|
| 1 | ST Length | 381 | 432 | 478 | 508 |
| 2 | TT Length | 605 | 632 | 659 | 696 |
| 3 | Reach | 434 | 458 | 483 | 518 |
| 4 | Stack | 644 | 649 | 656 | 660 |
| 5 | Standover | 736 | 764 | 798 | 819 |
| 6 | HT Angle | 69.3 | 69.2 | 69.2 | 69.2 |
| 7 | HT Length | 120 | 125 | 130 | 135 |
| 8 | ST Angle | 74.7 | 74.7 | 74.6 | 74.6 |
| 9 | CS Length | 420 | 420 | 420 | 420 |
| 10 | BB Drop | 66 | 65 | 65 | 65 |
| 11 | BB Height | 318 | 319 | 319 | 319 |
| 12 | Wheelbase | 1122 | 1149 | 1176 | 1213 |
| 13 | Front Center | 710 | 737 | 764 | 800 |
| 14 | Fork Length | 515 | 515 | 515 | 515 |
| 15 | Fork Offset | 51 | 51 | 51 | 51 |
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
Specs
| Frame | Kona Fat 6061 Aluminum Butted |
|---|---|
| Fork | Kona Wo Fat Carbon Disc |
| Rims | Sun Ringle Mulefut 80 Tubeless Ready |
| Hubs | Front Hub: Formula 150x15mm, Rear Hub: Formula 197x12mm |
| Spokes | Stainless Black 14g |
| Tires | Front Tire: Vee Tire Snow Avalanche TR 26x4.8", Rear Tire: Vee Tire Snowshoe XL TR 26x4.8" |
| Bottom Bracket | Race Face PF121 |
| Crankset | Race Face Ride FAT 190 |
| Chainrings | 28t Ride Wide Narrow |
| Shifters | Shimano Deore |
| Rear Derailleur | Shimano Deore |
| Cassette/Freewheel | Shimano Deore 11-51t 12 spd |
| Chain | Shimano Deore 12 spd |
| Brakes | Shimano MT410 Hydraulic |
| Rotors | Shimano RT56 180mm |
| Brake Levers | Shimano M4100 Hydraulic |
| Handlebars | Kona XC/BC 35 |
| Tape/Grips | Kona Key Grip |
| Stem | Kona XC/BC 35 |
| Headset | FSA No.57B |
| Seatpost | Kona XC/BC 31.6mm |
| Saddle | Kona Fat |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Gloss Metallic Green / Small / 26-inch | 841073151080 | B36WOO01 | |
| Gloss Metallic Green / Medium / 26-inch | 841073151097 | B36WOO03 | |
| Gloss Metallic Green / Large / 26-inch | 841073151103 | B36WOO05 | 210000005474 |
| Gloss Metallic Green / X-Large / 26-inch | 841073151110 | B36WOO06 | 210000005478 |
